Made of high quality carbon fiber material, with high performance, low noise, low vibration, high reliability, easy to install, easy to maintain.

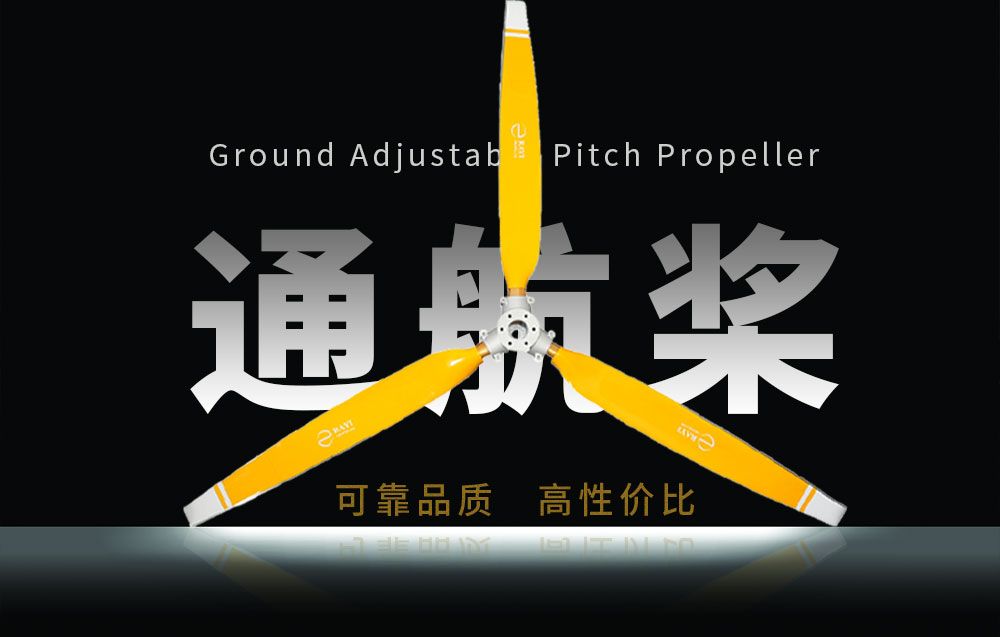

Ground Adjustable Pitch Propellers
68 inch,3 blades
Product Description
Specification
product name: RAYI 68 inch Ground Adjustable Pitch Propellers carbon fiber 3 blades Propeller for manned aircraft
Propeller type: 3 blades
Includes: 3 pcs propeller blades and propeller hub
specifications: IIKE
model: RAYI-68
Diameter (inches): 68
Pitch (inches): Adjustable
Material: carbon fiber and aluminium
Surface Treatment : Polished or Frosted
Single net weight: 4.0 kg
Installation method: Screw fixation
Applicable models: Multi rotor,Vertical fixed wing
Thrust Limitation: 226.5kg
Optimum RPM: 2600
working ambient temperature: -20℃~+60℃
Storage temperature: -10℃~+40℃
Propeller Introduction
1.
Blades | Crafted from 100% carbon fiber for exceptional strength and lightweight performance
|
Foot | 7075 high-strength aerospace aluminum |
Hub | Compact hub for reduced drag and improved engine cooling |
Leading edge protection | Metal strip leading edge for better reinforcement |
Aerodynamic configuration | Efficient, lightweight, and durable. Newly designed for excellent static and cruise thrust performance. Special design reduces noise.
|
Moment of Inertia | Calculated and validated to strictly comply with engine limitations. |
Balancing | Each manufacturing step ensures blade balance where propellers undergo rigorous process control to ensure perfect balance. |
Pitch adjustment | Ground adjustable pitch / Simple adjustment with a precise digital |
Periodic checks | Screws tightening is checked before every flight. Blade pitch angles undergo minor inspections every 50 hours and major inspections every 3 months. |
Accessories | The kit delivered with the propeller includes the hub and a complete set of hub bolts. |
2. PROPELLER ASSEMBLY
2.1 Basic parameters of propeller
Model number | RAYI-68 | Serial numbers | |
Compatible engine | ROTAX912/914 | Engine Horsepower | 80-115 HP |
Direction of rotation | Left turn (viewed from aft) | Number of blades | 3 |
Diameter | 68(inch) | Screw pitch | R75%15.5° 15.5° at 75% radius (final adjustment based on engine speed requirements) |
Range of pitch | 10~30° | Weight | ≤4.0 KG |
Pull/thrust | 226.5KG/2386 RPM | Maximum speed | 2600 RPM |
Materials | Carbon fiber composite material | Operating temperature | -20℃~60℃ |
Technical Parameter
Propeller parameter
| 15.5°/R75% 15.5° at 75% radius | Air pressure
| 1000hpa | Temperature
| 33℃ |
Humidity | 57% | Wind power | Test rig | ||
Revolutions(RPM) | Torque(N·m)
Torque ((N·m) | Power(KW) | Thrust(KG) | ||
1000 | 40.64 | 4.25 | 40.2 | ||
1105 | 49.62 | 5.74 | 48.9 | ||
1206 | 59.11 | 7.46 | 58.2 | ||
1301 | 68.68 | 9.371 | 67.8 | ||
1404 | 80.11 | 11.78 | 78.9 | ||
1503 | 91.80 | 14.43 | 90.4 | ||
1612 | 105.6 | 17.83 | 104.2 | ||
1706 | 118.28 | 21.13 | 116.5 | ||
1802 | 131.96 | 24.90 | 130.2 | ||
1907 | 147.79 | 29.51 | 145.6 | ||
2001 | 162.72 | 34.09 | 160.3 | ||
2103 | 179.73 | 39.58 | 177.1 | ||
2220 | 200.29 | 46.56 | 199.4 | ||
2386 | 234.36 | 57.81 | 226.5 | ||
2453 | 244.53 | 62.81 | 240.1 | ||
2556 | 265.5 | 71.06 | 261.5 | ||
تريد أن تختار الصحيح المروحة لك؟
قم بإجراء اختبار سريع للعثور على المروحة المناسبة لك.
1. RAYI Propeller Usage and Maintenance Guidelines
l Adherence to VFR Regulations
RAYI propellers must be operated exclusively under VFR (Visual Flight Rules) conditions. This restriction prohibits the utilization of aircraft equipped with RAYI propellers in adverse weather conditions.
l Unforeseen Adverse Weather Encounters
In the event of an unintended entry into adverse weather conditions, pilots must implement all necessary measures to land the aircraft at the earliest possible opportunity.
l Severe Weather Precautions
During instances of thunderstorms or heavy rainfall, it is strongly recommended to reduce engine (propeller) RPM and expedite landing procedures.
l Impact of Cleanliness on Efficiency
Propeller efficiency is directly influenced by the level of cleanliness. Contaminated propellers can experience a significant reduction in efficiency.
l Major Repair Procedures
For major repairs or damage necessitating substantial maintenance, the propeller must be returned to the manufacturer or undergo evaluation by RAYI’s expert team.
l Balancing and Technical Interventions
The final inspection and balancing of propellers are meticulously performed by RAYI prior to delivery. Any unauthorized technical intervention on the propeller may compromise its balance and potentially induce harmful vibrations that could damage the engine. In the event of any unexpected incidents, contact RAYI immediately.
l Additional Notes
For optimal performance and safety, it is crucial to adhere to the outlined guidelines and maintenance procedures.
Regularly inspecting and cleaning propellers according to the manufacturer's recommendations is essential to maintain their efficiency and prolong their lifespan.
Failure to comply with the provided instructions and maintenance recommendations may void the warranty and could potentially lead to safety hazards.
By adhering to these guidelines and maintaining proper care, you can ensure the safe, efficient, and optimal performance of your RAYI propellers.
Packaging & Shipping
إذا كان لديك أي أسئلة، يرجىاتصل بنا
إذا كان لديك أي أسئلة، يرجىاتصل بنا
Warning
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
