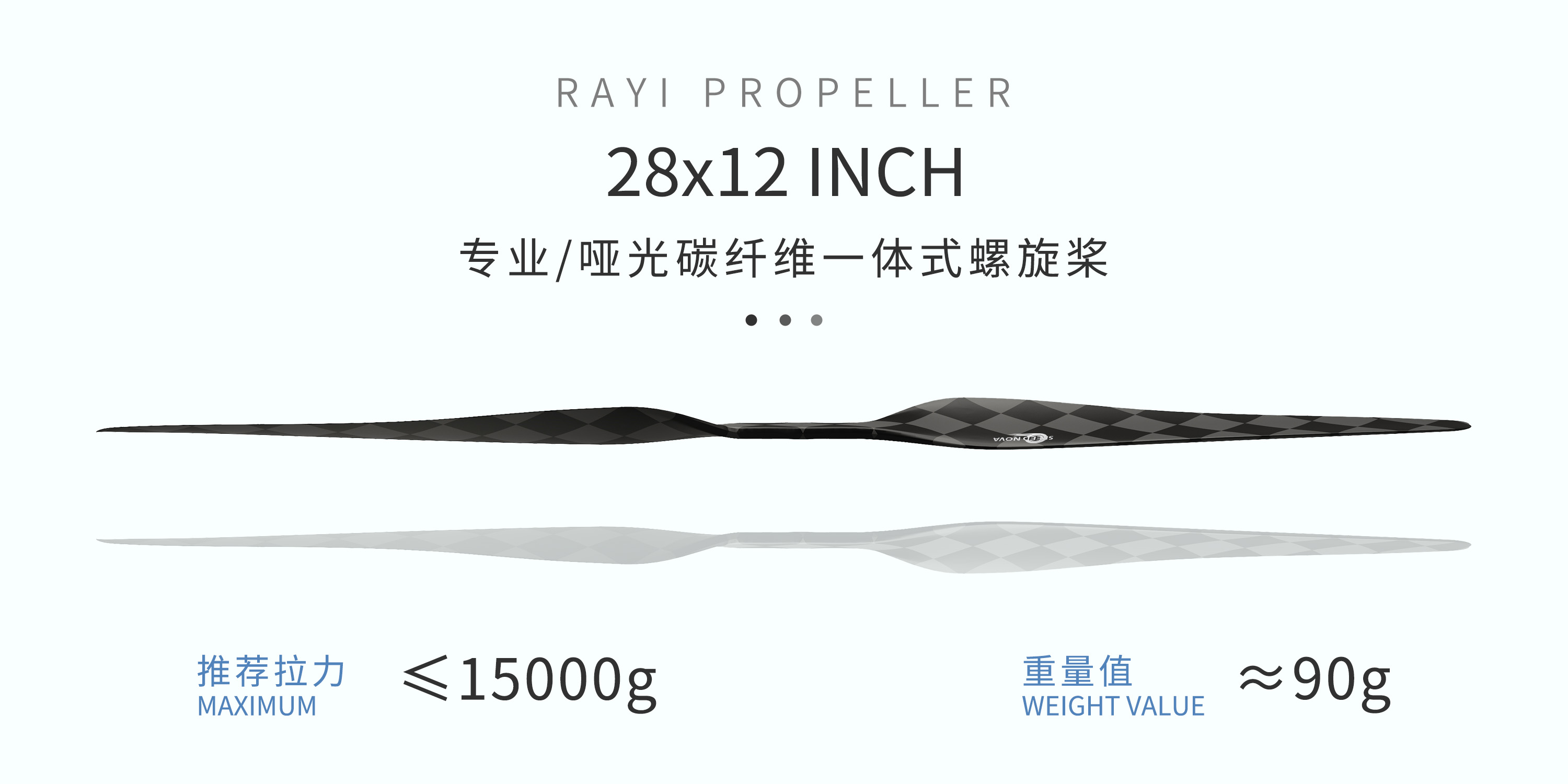

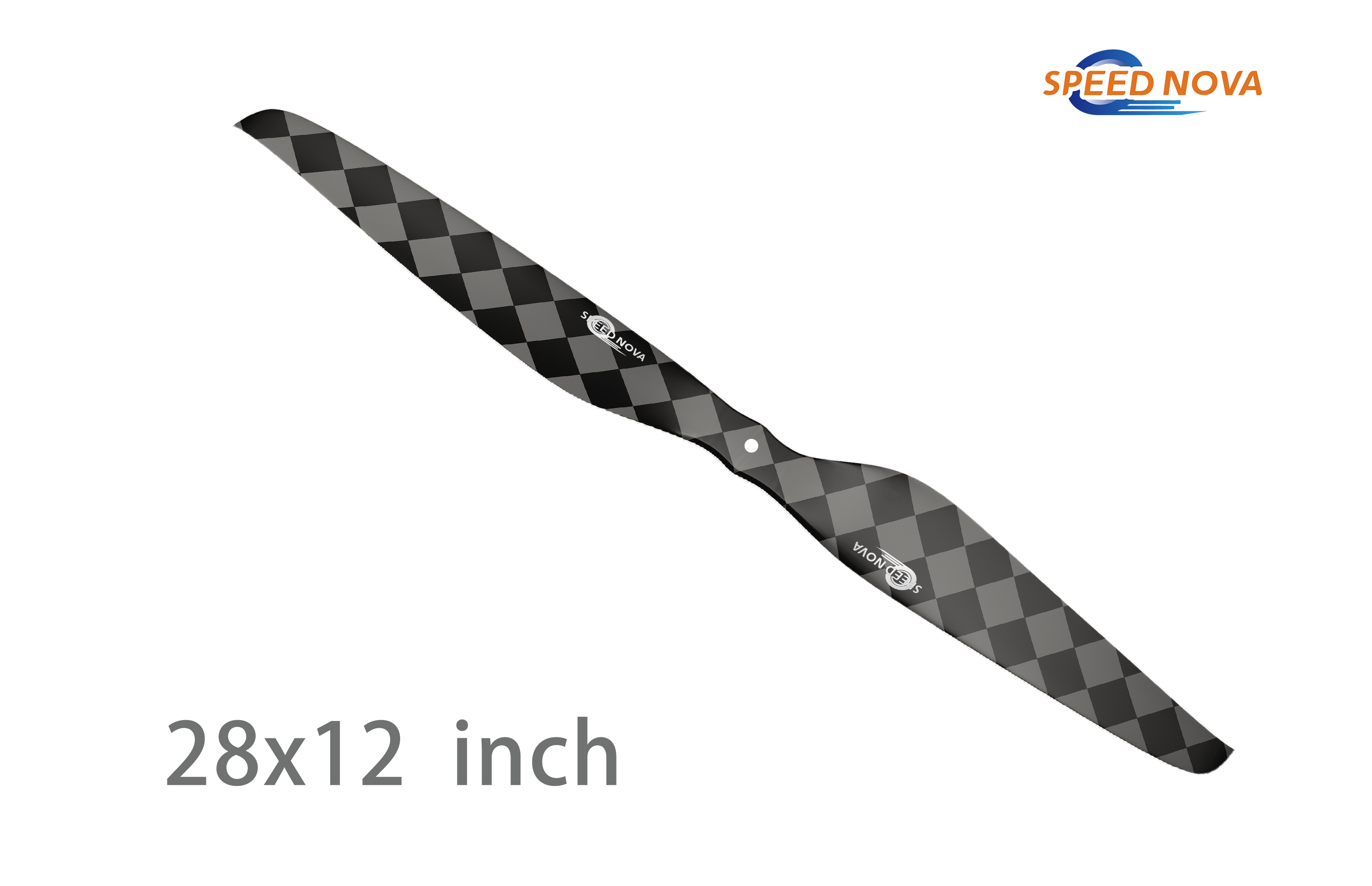

28*12 مروحة كربون فايبر
28*12 مروحة كربون فايبر

28*12 مروحة كربون فايبر

Ultralight,Durable,High efficiency

  • Straight type

    28*12 inch

استفسر الآن

Product Description

Specification

product name: 30*9.8 inch Ultra light carbon fiber integrated CW/CCW Propeller


Propeller type: 2 blades-integrated


Includes: 1 piece CW and 1 piece CCW propeller


specifications: IIXP,IIXE


model: 30*9.8Y


Diameter (inches): 30


Pitch (inches): 9.8


Material: carbon fiber and epoxy


Surface Treatment : Polished or Frosted


Single net weight: 74.4g


Installation method: Screw fixation


Applicable models: Multi rotor,Vertical fixed wing


Thrust Limitation: ≤8000g


Optimum RPM: ≤3300r/min


working ambient temperature:   -40℃~+60℃


Storage temperature:  -10℃~+40℃

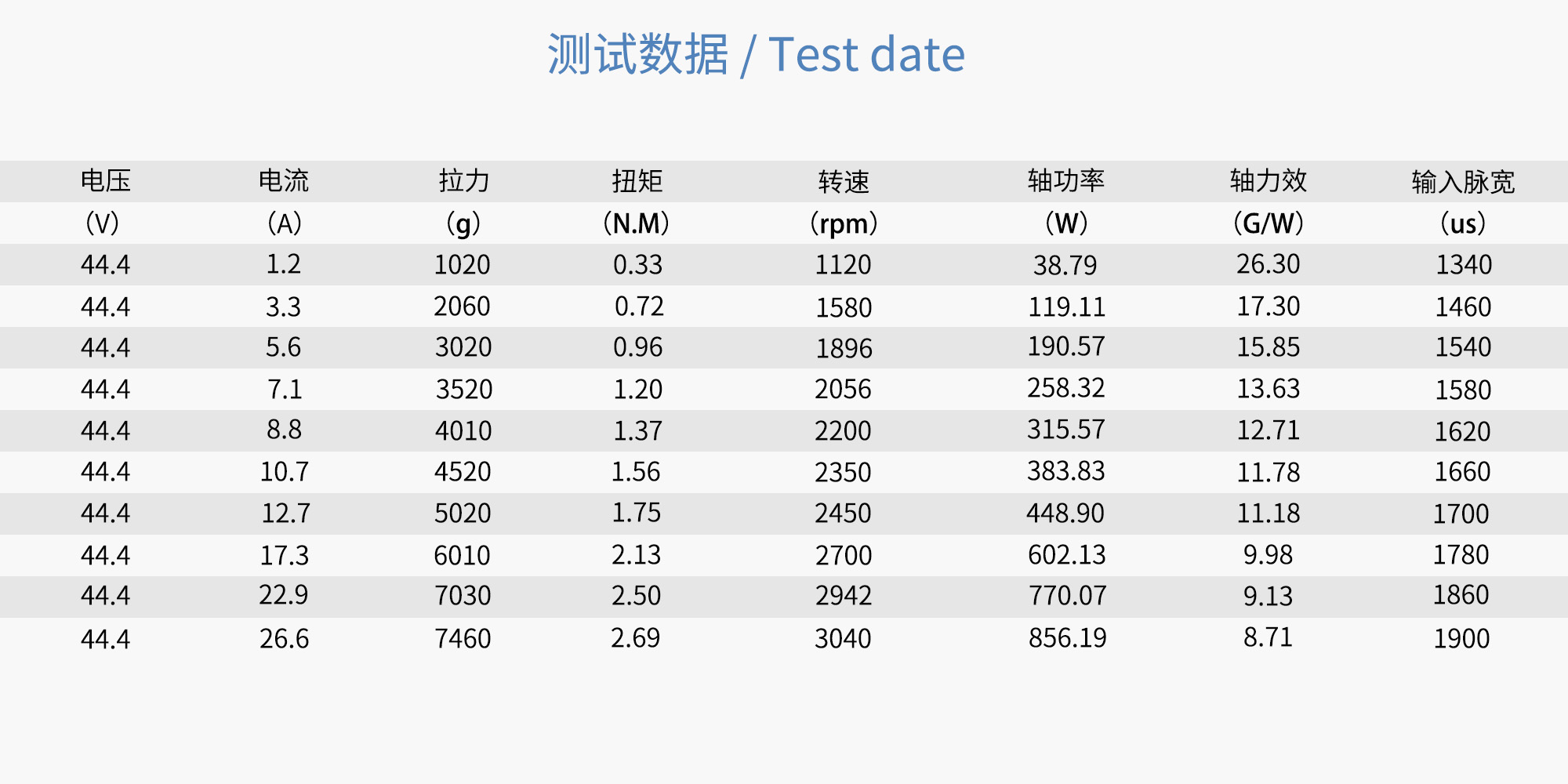

Technical Parameter

28*12XE Carbon Fiber Straight CW CCW Propeller

تريد أن تختار الصحيح المروحة لك؟

قم بإجراء اختبار سريع للعثور على المروحة المناسبة لك.

اتصل بنا

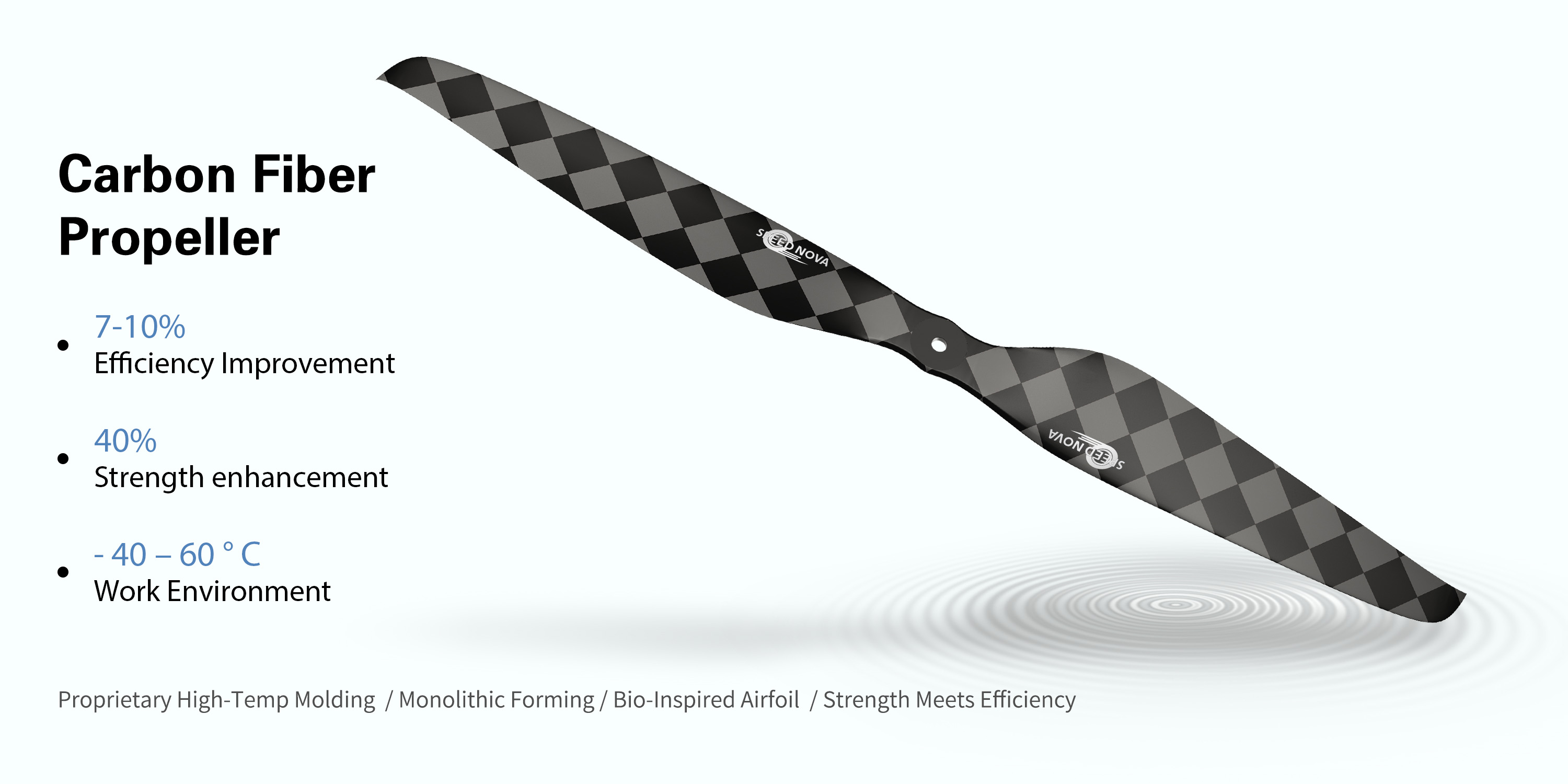

Feature

Our carbon propellers use modified materials, with extremely low water absorption, 38% carbon fiber content, higher strength than other peer products, and high propeller efficiency. High quality and low price, it is recognized in the industry as the most cost-effective product series.

1. With fine workmanship and exquisite appearance.
2. The blades have passed precise dynamic balance inspection, and the flight noise is low.
3. High aerodynamic efficiency, low power consumption, improve battery life.
4. Light and strong pulling force, and excellent balance.
5. Adopts push-type quick release design, which is easy to assemble and disassemble.
6. Adapted to various types of drones, widely used in firefighting, surveying, monitoring, logistics, express delivery, military and police equipment, and university research projects
7. It is a perfect replacement for the damaged parts.



Dimensions:

We have12X4inch,14X8inch,15X5inch,16X6inch,16X8inch,16X5.5inch,17X6inch,17.5X6.5inch,18X6.5inch,  19X6.2inch20X6.5inch,22X7.8inch,22X9inch,24X7.8inch,24X15inch,26X8.2inch,28X12inch,28X12inch,29X9.6inch,
30X9.8inch,30X14inch,32X12inch,32.5X15.6inch,34X12inch,36X18inch,40X13inch,42X14inch,47.5X18inch,
50X19inch,52X19inch,57X19inch,60X19inch,64X20inch,72X31inch carbon fiber propellers for various drone or UAV

Accept customized size and design

Notice: Accepted OEM &ODM


Packing&shipping

28*12XE Carbon Fiber Straight CW CCW Propeller

إذا كان لديك أي أسئلة، يرجىاتصل بنا

إذا كان لديك أي أسئلة، يرجىاتصل بنا

إملأ نموذج الطلب

Warning

Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
